OPUS AGWS6 Graphic Workstation



Touch Screen

The workstation can be configured to operate in a touch screen mode. In this mode numeric and alphanumeric dialogs are used to request operator input.

Help Facilities

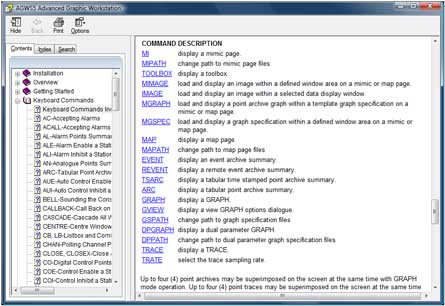

Help. Click to enlarge.Extensive help is available in the form of an on-line reference library. In addition you can create text files containing site-specific information for display on the workstation.

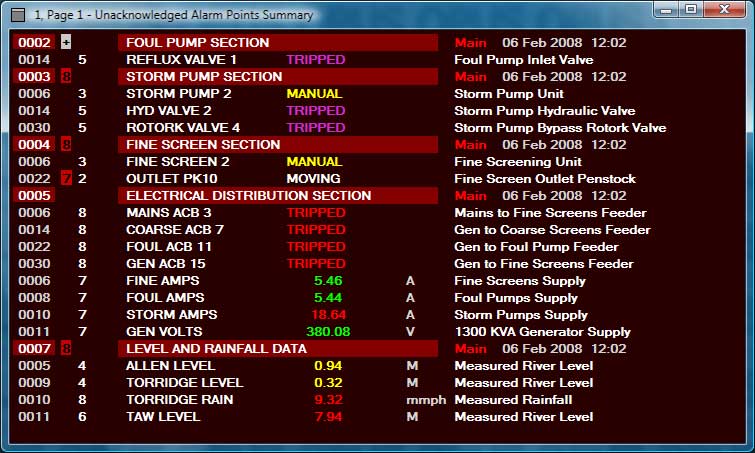

Unacknowledged alarm summary. Click to enlarge.Alarm Display and Management

Outstanding alarms are highlighted on all data summaries, mimic and map page displays. The workstation displays the highest priority alarm in a dedicated window area and can be configured to vocally annunciate alarms. Numerous summary commands are provided with which to query the system and display both acknowledged and unacknowledged alarm data.

Optional search restrictions can be used to filter the resulting real-time summaries. Alarms may be configured with a delayed annunciation, to be displayed only after a pre-configured persistence time interval. The workstation can also be configured to repeat alarm annunciation after a predetermined interval.

Workstation operating parameters. Click to enlarge.Workstation Customisation

Each workstation's operating parameters can be tailored to suit an operator's individual requirements. User defined commands and function keys (Normal, Shifted, Control and Alternate) can be configured to produce a standardised or highly individual workstation. Window definition files can be used to store and recall complex displays consisting of multiple window areas.

Concert Operation and Messaging

Multiple workstation displays can be controlled via a single keyboard. A message exchange facility is also provided between operators and separate PC6-SQL sites. In addition a file transfer facility is provided between the workstation and its connected PC6-SQL system.

System Monitoring

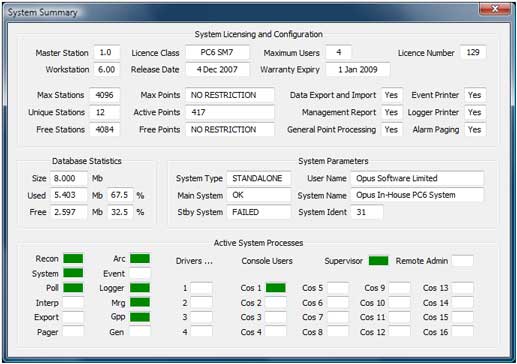

System Summary. Click to enlarge.Monitor utilities provide real-time statistical analysis of communications and software performance. The resulting statistical data can be displayed in summary form at the workstation along with the daily and monthly logs. Other utilities are provided to monitor the communication ports, network links and certain system processes. All monitored data can be captured and automatically saved to disk for later scrutiny.

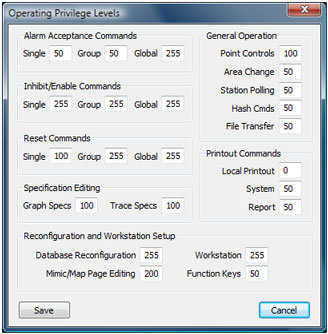

Operating privilege levels. Click to enlarge.System Security

System security for the workstation is afforded using privileged user accounts accessible by password entry.

Area codes can be assigned to each user account, thus restricting the user's display to alarms and summaries relating to their area(s) of interest.

Privilege levels may be assigned to a range of operating procedures including individual point controls, alarm acceptance, database reconfiguration, mimic/map configuration, report generation and printout. Automatic logout and disconnection is also a configured option. In certain applications the operator should not be allowed to exit the workstation or access the operating system. Therefore the workstation can be configured to automatically run on power up and only exit on password entry.

Database Reconfiguration

Database Reconfiguration. Click to enlarge.The on-line reconfiguration process provides a privileged operator of the system with the ability to edit or examine any data relating to the configuration of the system. Database records can be copied to speed up the configuration of similar sites. Auto configuration files can also be saved and loaded to copy or import data.
