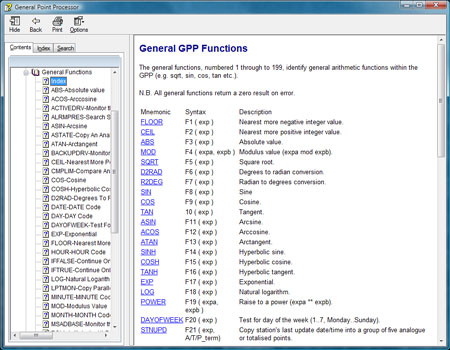

 General Point Processor
The general
point processor provides extensive maths, logic and control functions.
These functions may invoke other data processing and control applications,
or trigger events such as the generation of reports, alarm dial out, paging,
faxed messages etc. The formula results may be stored
within the database as pseudo points and will generate all necessary
alarms and events as determined by the pseudo point's configuration.
System Administration
 PC6-SQL
includes an extensive array of utility software to simplify system administration.
Monitor utilities provide real-time statistical analysis of communications
and software performance. Monthly logs are automatically generated and
archived for communications performance, system access and reconfiguration.
Other facilities include the monitoring of processes, all communication
ports and network links. Remote diagnostics can be undertaken using the
workstation's PSTN or network links.

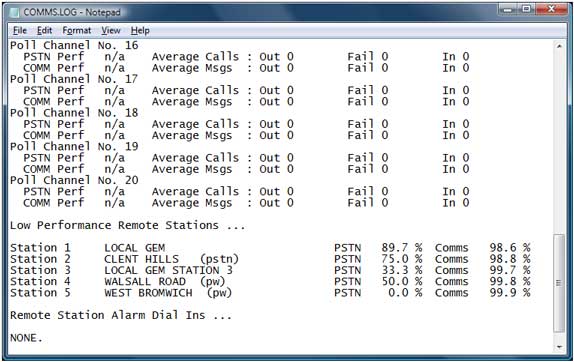

Communications Log
These log files record the monthly overall performance
for each data acquisition channel, listing all low performance stations
and a record of all alarm calls.
Automated Backup
All key data files are automatically backed up by the system into separate
year and month directories, creating a historic log of all configuration,
archive and performance data.
The key files will also be backed up to the system’s
file server PC. This means that none of your essential data is lost.
Standard Configurations
The PC6-SQL system is ideally suited to all sizes
of Telemetry/SCADA system and is designed to operate in both standalone
and hot-standby environments. Additional File Servers, SQL Servers, Web
Servers and Workstation Servers can be integrated into the PC6-SQL
architecture to create a powerful and flexible distributed Telemetry/SCADA
system.
Bespoke Software
Opus Software can provide bespoke software solutions for
all your Telemetry/SCADA, IMS, SQL database needs, including Web applications
and Web services.
|
